Violin Pattern, Willemotte 1734 Antonio Stradivari

Print Size: A3 (297 x 420 mm)

Exact Dimensions Included

CNC Compatible DXF File for Precise Cutting

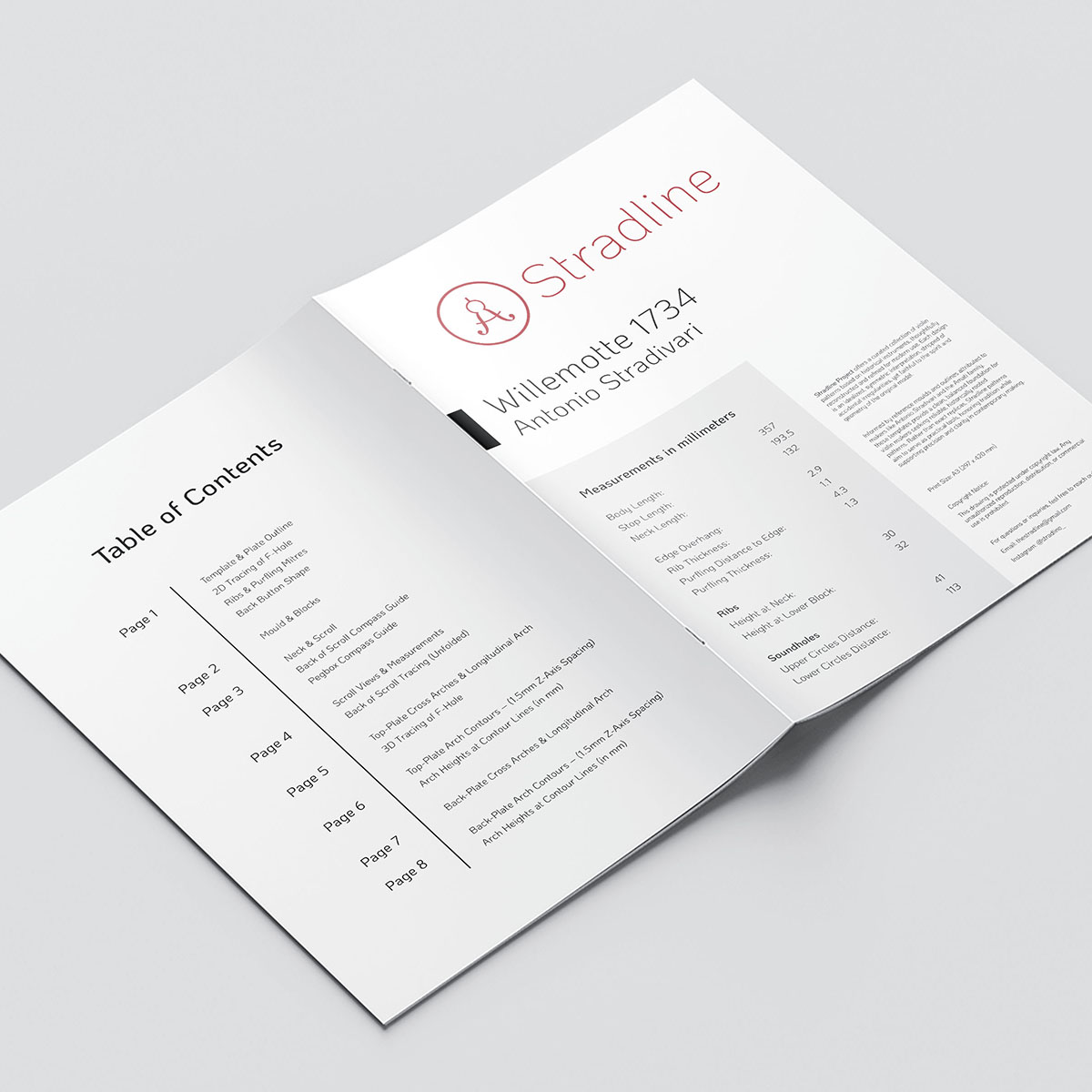

Table of Contents

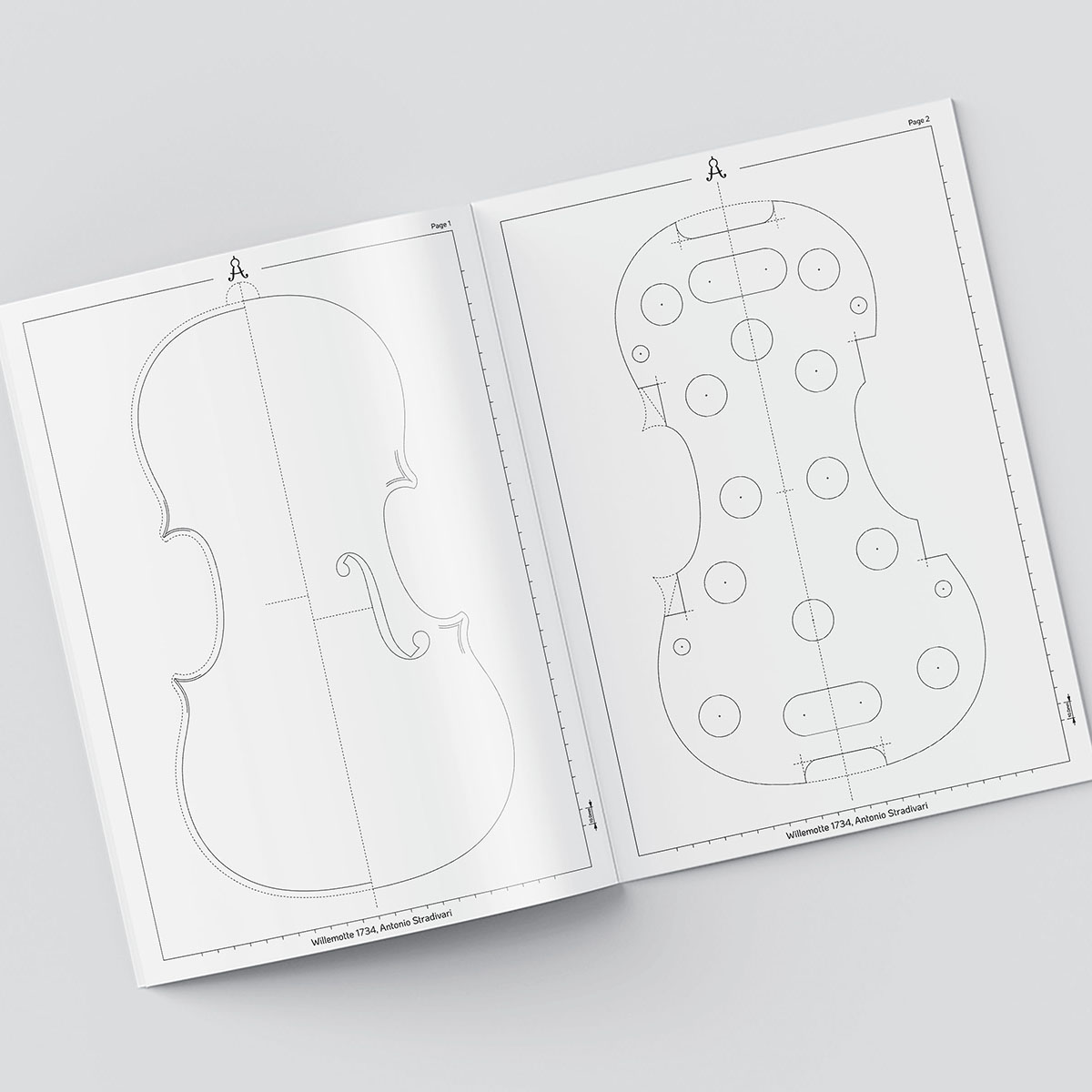

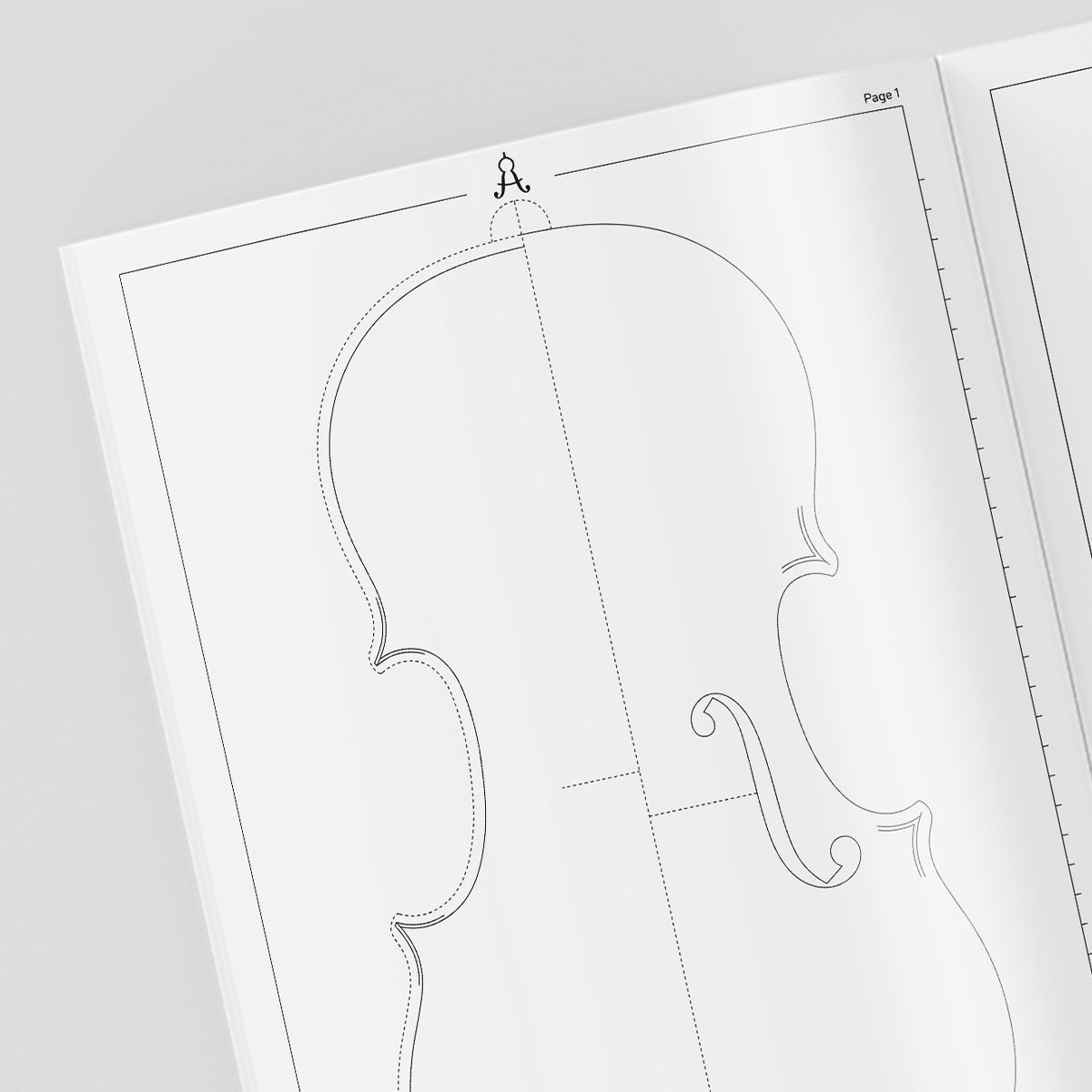

Template & Plate Outline

2D & 3D Tracing of F-Hole

Ribs & Purfling Mitres

Back Button Shape

Mould & Blocks

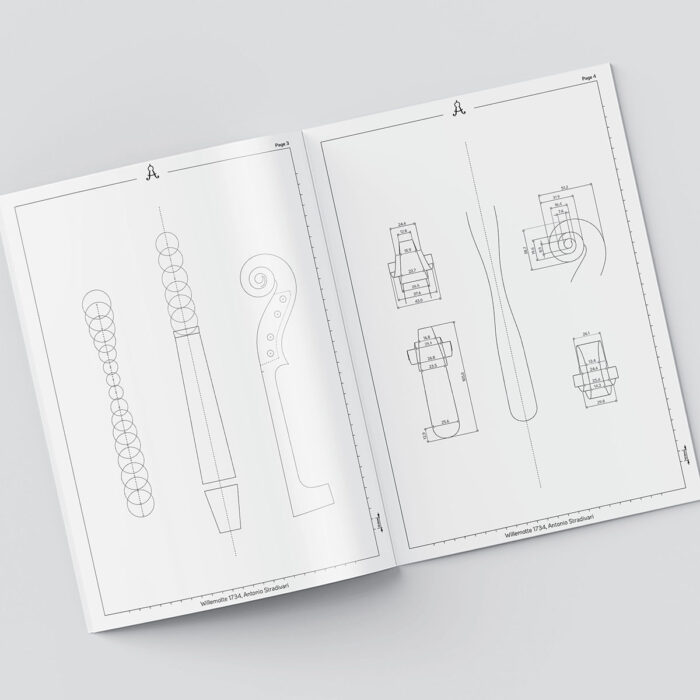

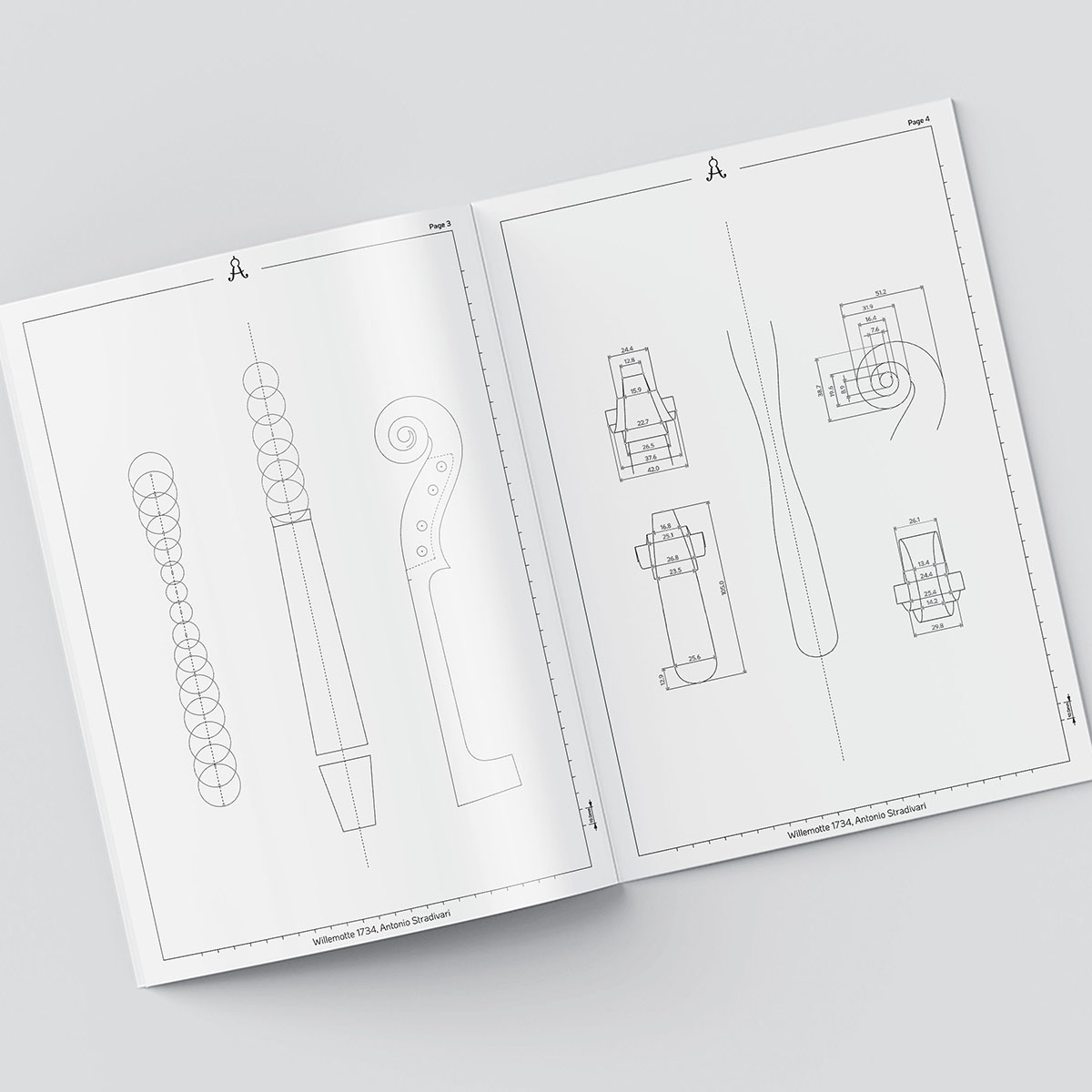

Neck & Scroll

Back of Scroll Compass Guide

Pegbox Compass Guide

Scroll Views & Measurements

Back of Scroll Tracing (Unfolded)

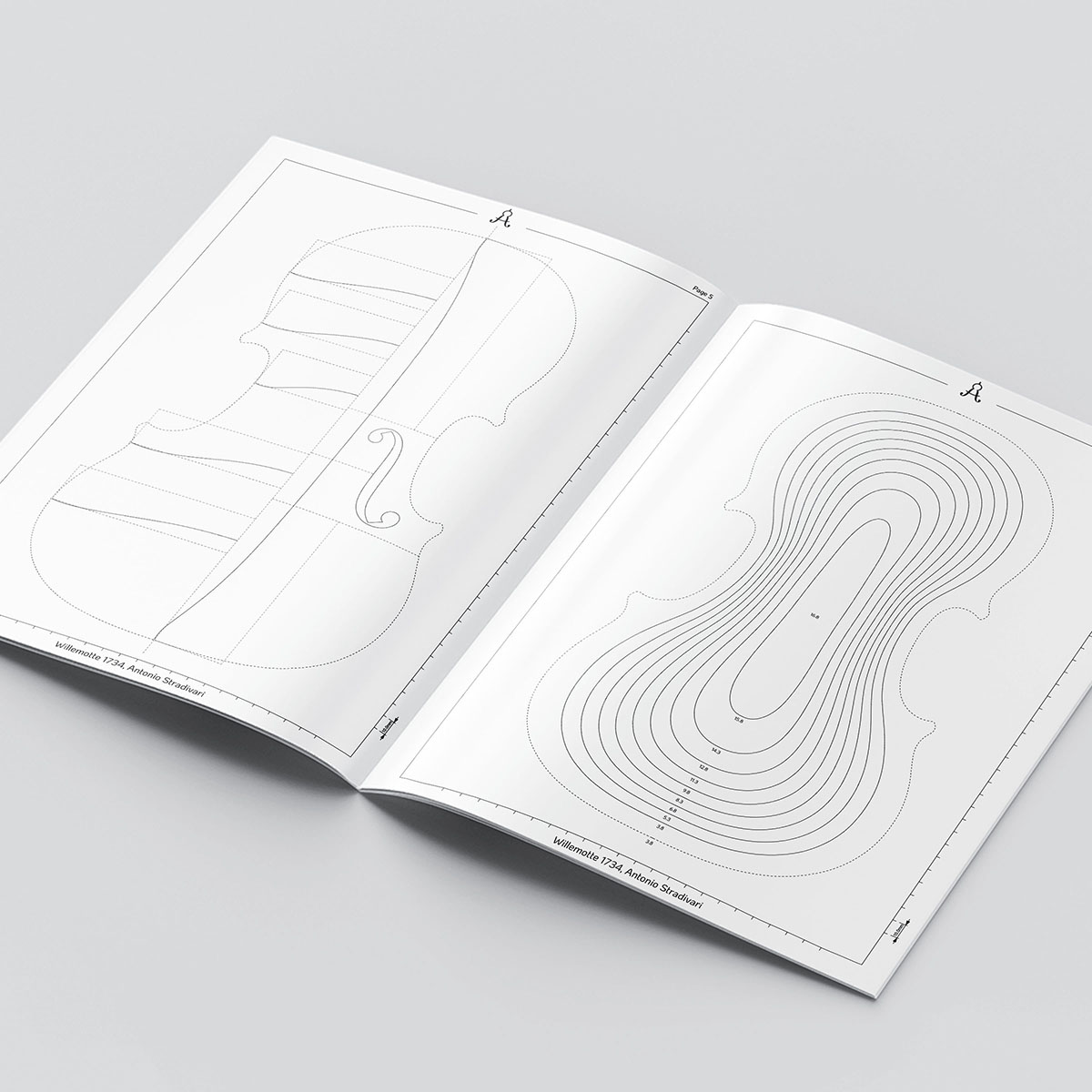

Top-Plate Cross Arches & Longitudinal Arch

Top-Plate Arch Contours – (1.5mm Z-Axis Spacing)

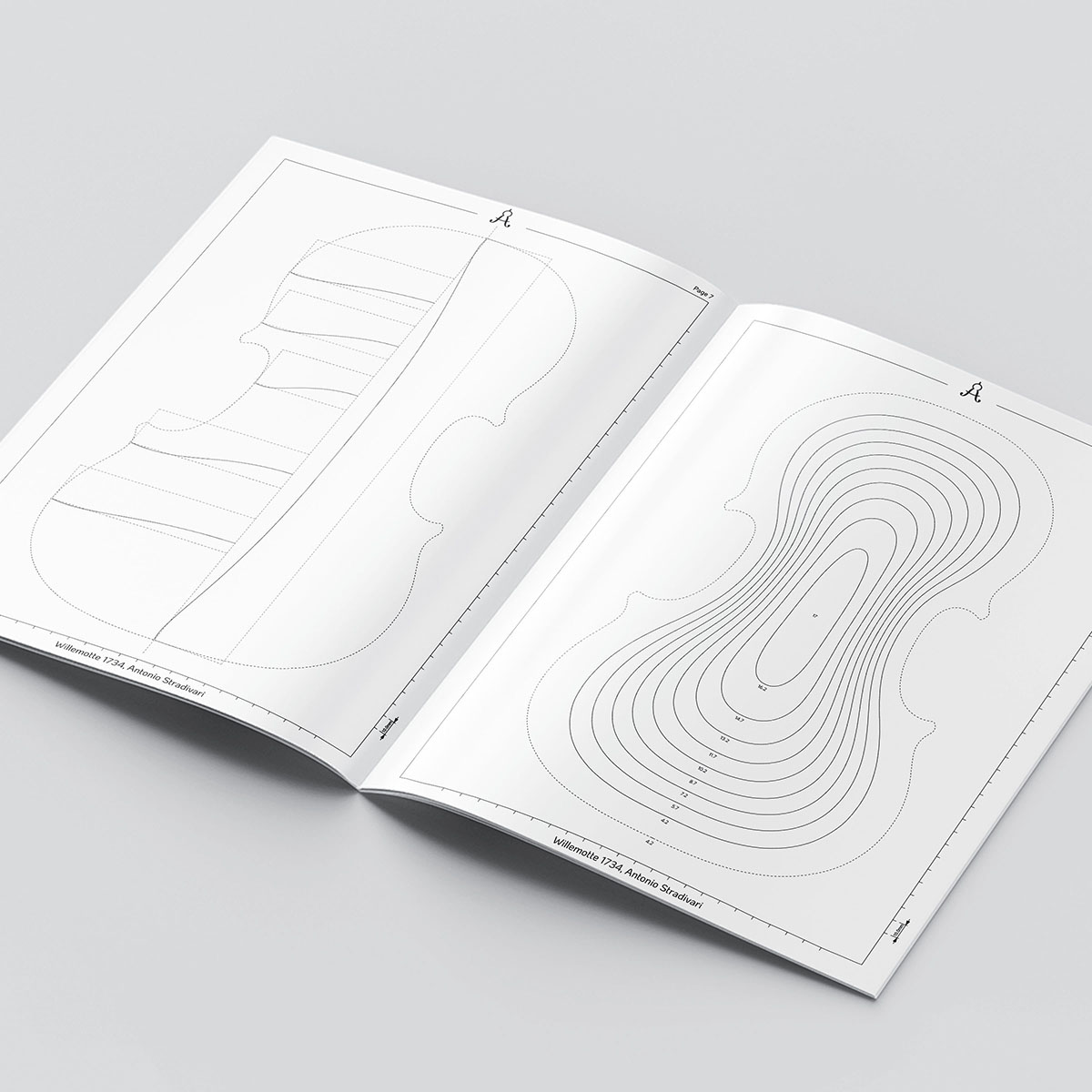

Back-Plate Cross Arches & Longitudinal Arch

Back-Plate Arch Contours – (1.5mm Z-Axis Spacing)

Arch Heights at Contour Lines (in mm)
