What’s Inside the Patterns
Each pattern in Stradline is more than just an outline. It’s a detailed geometric and visual study of classical violin forms. You’ll find accurate contours, reference points and construction guides that reflect both tradition and precision. Whether you’re a maker, student, or curious learner, these resources are designed to support hands-on work and deepen your understanding of classical design.

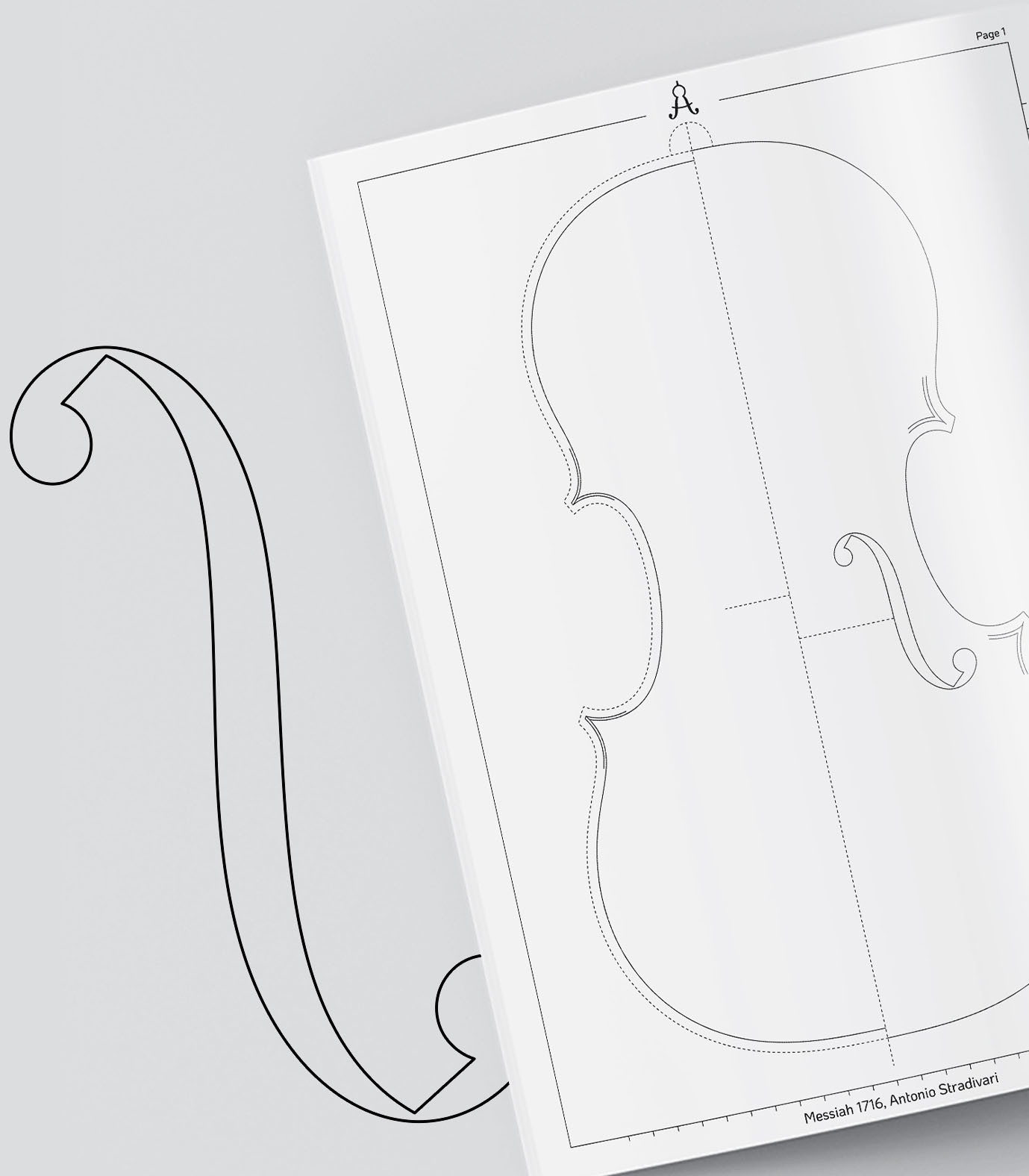

Template & Plate Outline
2D Tracing of F-Hole
Ribs & Purfling Mitres
Back Button Shape

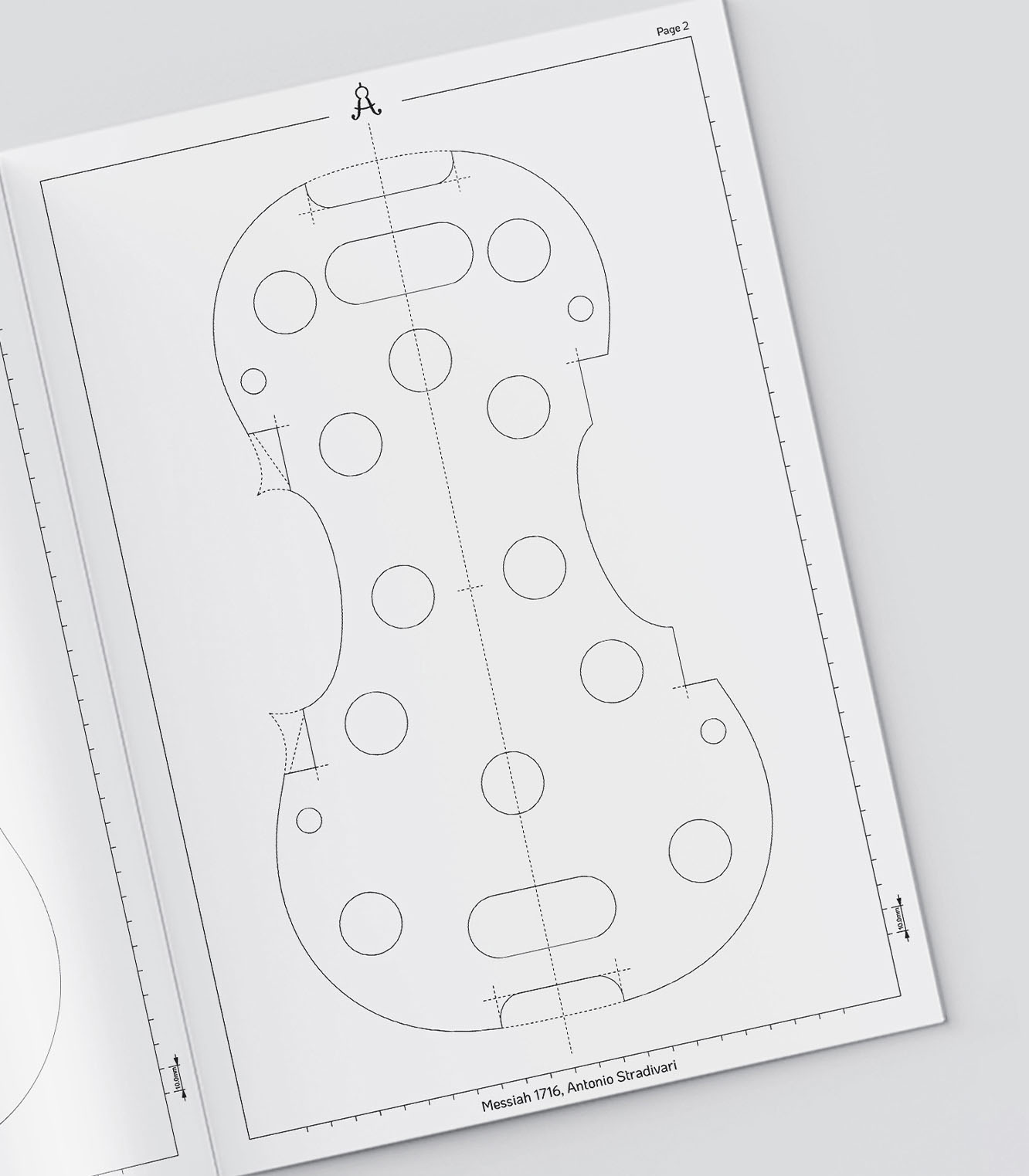

Mould & Blocks
The provided DXF file can be used for precise cutting on a CNC or Laser-cut machine.
Neck & Scroll

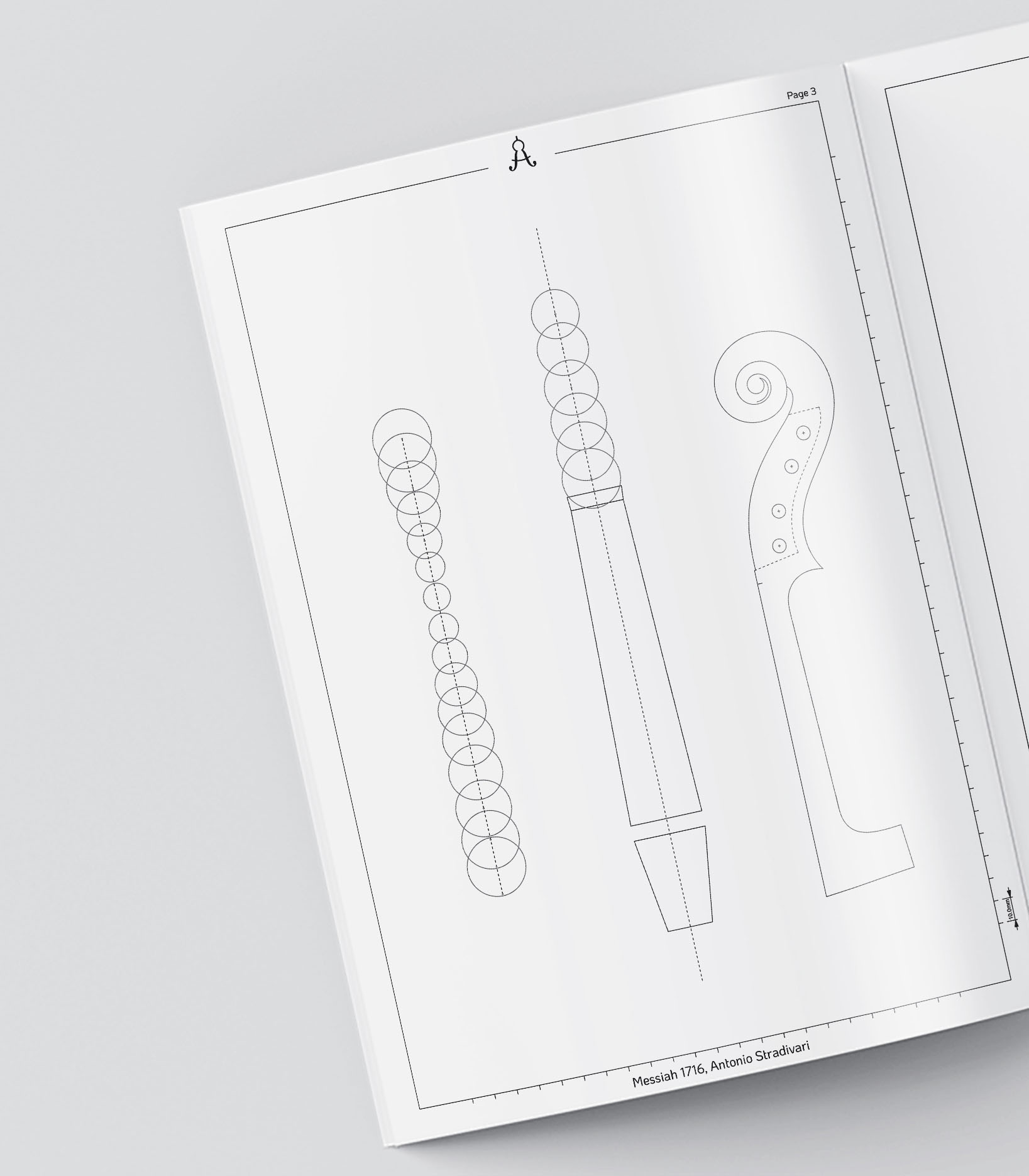

Back of Scroll Compass Guide
Pegbox Compass Guide

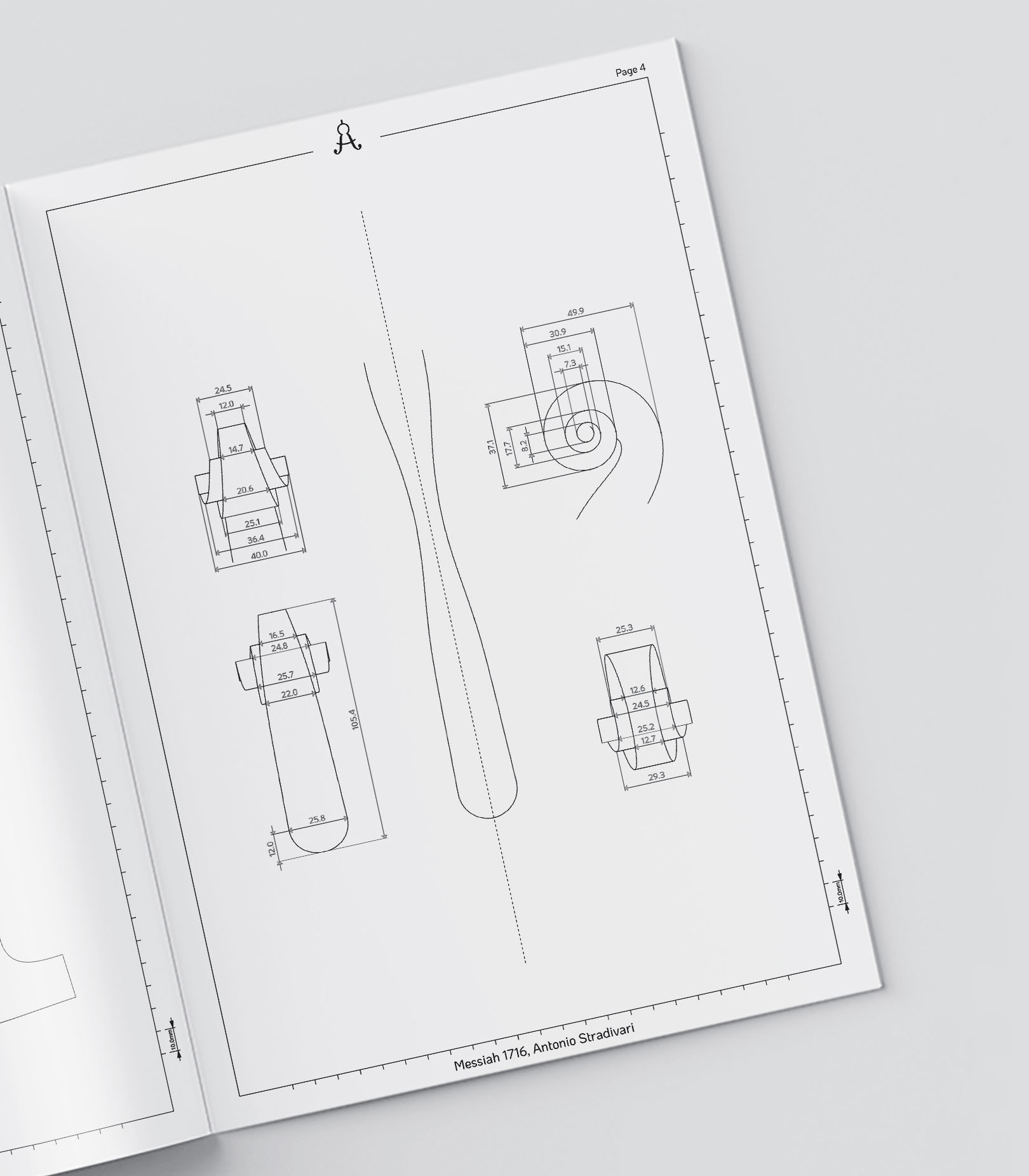

Scroll Views & Measurements
Back of Scroll Tracing (Unfolded)

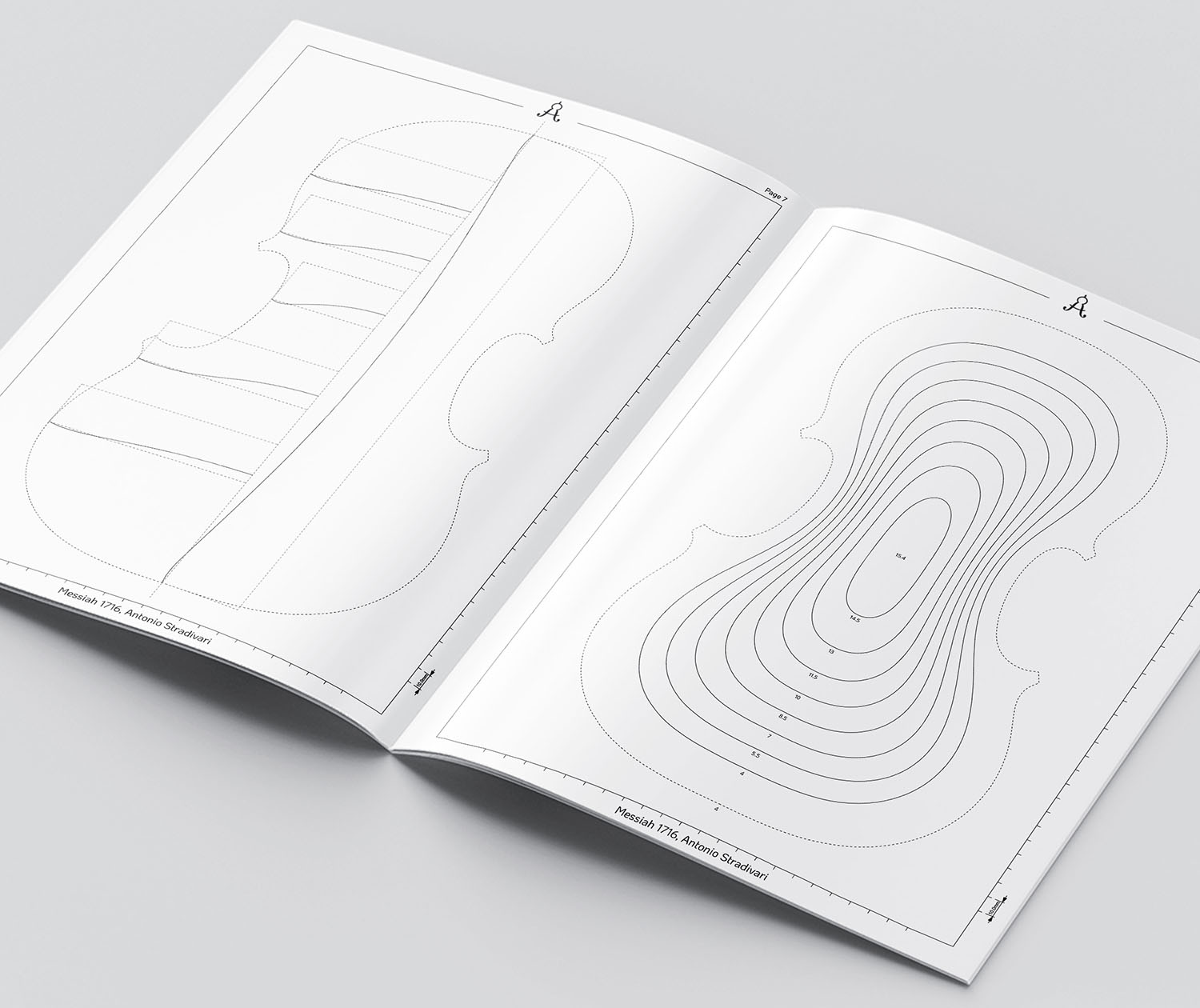

Top-Plate
Cross Arches &
Longitudinal Arch
Arch Contours
(1.5mm Z-Axis Spacing)
Arch Heights
at Contour Lines
(in mm)

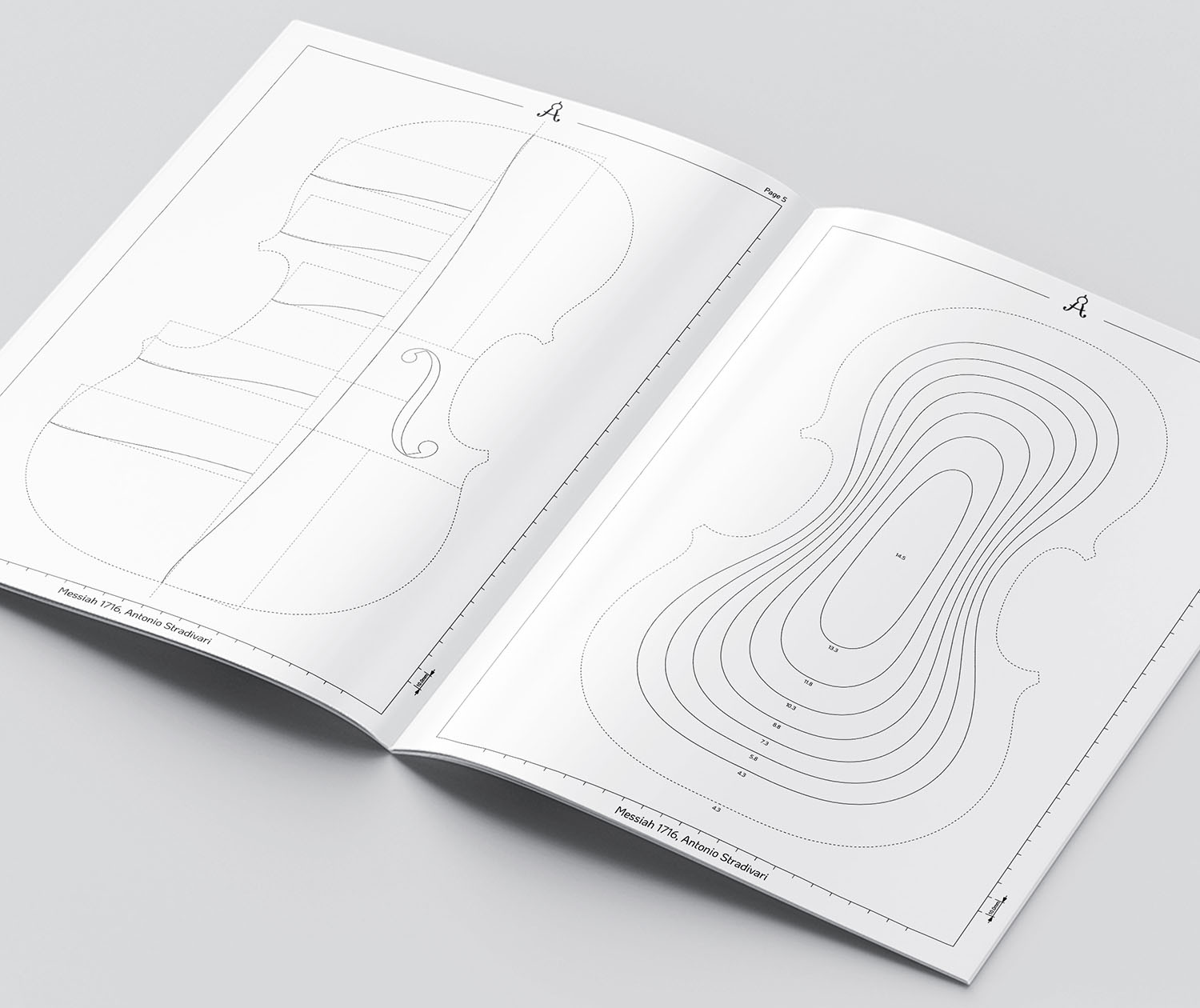

Back-Plate
Cross Arches &
Longitudinal Arch
Arch Contours
(1.5mm Z-Axis Spacing)
Arch Heights
at Contour Lines
(in mm)
3D Tracing of F-Hole
Captures the true geometry of the F-Holes as they exist on the curved surface of the top-plate.
